MAC motor® - Integrated Servo Motors
The MAC motor - the complete motion solution
Brushless servo motor with integrated controller
all necessary components in one unit
The basic idea of the MAC motor is to minimize the installation costs but also to make a component that is much better protected against electrical noise which can be a problem when using long cables between controller and motor.
The servomotor, hallsensor, encoder and electronics are specially developed by JVL so that they together form an enclosed unit where the power driver and controller are mounted inside the motor in a closed section.
The MAC motors can be delivered in sizes of
50 to 141W, MAC050 to 141 range,
400W, MAC400 motor,
750W, MAC800 motor,
1500-3000W, MAC1500-3000 motor.
Adapt your motor to your application with Expansion Modules
JVL MAC Integrated Servo Motors utilize the unique module concept. Plug-in expansion modules adapt the motor to the application. You can choose connector type: D-Sub, cable glands or M12 connectors and you can choose freely between Profibus, DeviceNet, CANopen, Ethernet or nano PLC control. High Speed and wireless modules add to the selection.
This means that the MAC motor gives you possibilities no other motors on the market can provide. Also important, you only pay for what you need. In addition, if you do not find the features you require, please contact us and we will develop your own customized module.
Benefits of integrated motors
The benefits of integrated motors are that
they do not take up space in the control
cabinet, and are all-in-one units. All
electronics are combined in the same
metal housing for high EMC safety.
ePLC™ embedded PLC
All JVL motors have ePLC™ built-in with
up to 13 IO points. It enables <1 ms
reactions times and can work together
with a master PLC running Ethernet.
Graphical point-n-click programming.
Ethernet with protocol change
This unique feature gives you the flexibility
to change protocol between Profinet,
EtherNet/IP, Sercos, EtherCAT, Powerlink
and Modbus TCP/UDP on any JVL motor.
It is easy with JVL’s MacTalk® software.

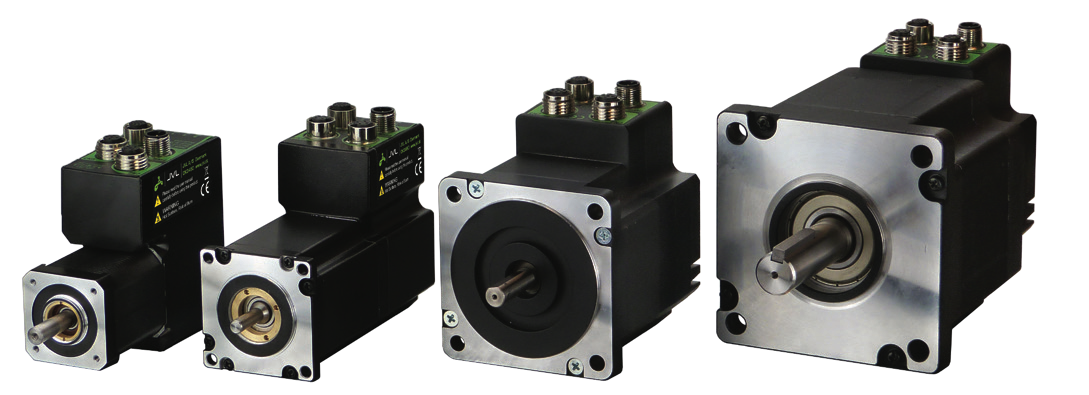

ServoStep™ - Integrated Stepper Motors
ServoStep™ - is the complete motion solution. Stepper motors with integrated controller and all necessary components in one unit
The basic idea of the ServoStep™ is to minimize the installation costs but also to make a component that is much better protected against electrical noise which can be a problem when using long cables between controller and motor.
Motor, encoder, drive electronics, control electronics with ePLC™ and optional Ethernet or CANopen are integrated into one compact unit. All major industrial Ethernet protocols like Profinet, EtherNet/IP, EtherCAT, SERCOS, ModbusTCP/UDP and Powerlink are available.
Options include: absolute multiturn encoders, STO (safe torque off, SIL3) and brakes.
Torque range is from 0.18 to 25.0 Nm.
New Innovative Technology
The modern design incorporates closed-loop operation - providing higher torque, faster acceleration, torque control, stall free operation and quieter movements than traditional stepper motor systems.
ServoStep™ has higher efficiency and runs cooler because motor phase currents are regulated up and down according to need. Performance of JVL closed-loop steppers are similar to servo motors, but with higher torque and often without the need of a gearbox, resulting in cost savings.
Design safety factors have always been high for stepper motors to ensure stall-free operation – now with ServoStep™ closed-loop the motors can be operated very close to the limit resulting in even lower costs and more compact designs.
Adapt your motor to your application with different firmware
All ServoStep™ motors have built-in RS485 communications port and programmable ePLC™ with optional CANopen interface. Another option is industrial Ethernet: you can choose between all major Ethernet protocols - Profinet, EtherNet/IP, SERCOS, EtherCAT, Powerlink or Modbus TCP/UDP.
You can even change between the different Ethernet protocols by changing the firmware using the MacTalk® software – and the protocol change is free-of-charge and you can change as many times as you like!
Key features:
- Very high motor torque +40%
- Industrial Ethernets - 6 protocols
- Closed-loop operation
- Absolute multiturn encoder
- Safe Torque Off (STO) input
- High resolution 409600 cnt/rev.
- Double shaft
- Speed 0-3000 in 0.01RPM steps
- Electromechanical brake
- Wide supply range 7-72VDC
- Protection class up to IP65
- Connectors: M12 industrial
